Lead Wiring: TGGT

TGGT high temperature lead wire

Appliance and Industrial Lead Wire:

600 Volts, 250c, 20 AWG - 2 AWG.

Conductor:

Flexible stranded nickel plated, annealed copper.

Sizes:

20 AWG - 2 AWG.

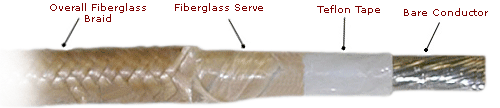

Insulation:

PTFE polyimide tapes covered by wrapped fiberglass yarns. A fiberglass braid jacket is applied over the insulation, then treated with a high-temp saturant. Natural color is tan. Other colors available on request.

Applications:

Used for the internal wiring of commercial, industrial, and household ovens as well as cooking equipment. Suited for severe hot spot locations in industrial processing.

Approvals:

UL Style as listed. CSA AWM Class I - Group A/B.

Search Our Site

Other High Temperature Lead Wires

AWG	Stranding	Insulation Thickness	Serve	Braid Thickness	Overall Diameter	Amps	Weight Lbs / Mft	Temperature Rating
20	10/.0100	0.011	.008	.005	0.092	16	10	250°C
18	16/.0100	0.011	.008	.005	0.102	23	13	250°C
16	26/.0100	0.013	.008	.005	0.115	29	17	250°C
14	41/.0100	0.013	.008	.005	0.130	40	23	250°C
12	65/.0100	0.013	.008	.005	0.150	55	32	250°C
10	105/.0100	0.013	.008	.005	0.175	75	48	250°C
8	133/.0111	0.013	.008	.005	0.235	95	72	250°C
6	133/.0142	0.016	.008	.006	0.310	135	120	250°C
4	133/.0177	0.016	.008	.006	0.365	175	175	250°C
2	133/.0223	0.016	.008	.006	0.435	230	270	250°C

*Dimensions and weights shown are nominal, subject to standard industry tolerances.
