High Temperature Lead Wire: MG

MG high temperature lead wire

High Temperature Lead Wire:

600 Volts, 450C, 20 AWG - 500 MCM.

Conductor:

Flexible stranded 27% nickel plated, annealed copper.

Sizes:

20 AWG - 500 MCM.

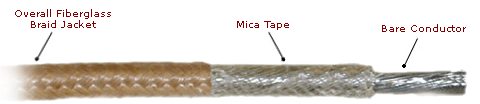

Insulation:

Glass reinforced phlogopite mica tapes. A fiberglass braid jacket is applied over the insulation, then treated with a high temperature saturant. Natural color is tan. Other colors available on request.

Applications:

Used for internal wiring of domestic and commercial ovens as well as cooking appliances. Also ideal for use in electric heaters and for equipment wiring in iron mills, glass plants and cement kilns.

Approvals:

UL Style as listed. CSA AWM Class I - Group A/B.

Search Our Site

Other High Temperature Lead Wires

AWG	Stranding	Insulation Thickness	Braid Thickness	Overall Diameter	Amps	Weight Lbs / Mft	Temperature Rating
20	10/.0100	0.025	.007	0.105	23	10	450°C
18	16/.0100	0.025	.007	.0115	31	12	450°C
16	26/.0100	0.025	.007	0.125	40	16	450°C
14	41/.0100	0.025	.007	0.140	55	23	450°C
12	65/.0100	0.025	.007	0.160	75	31	450°C
10	105/.0100	0.030	.017	0.210	100	52	450°C
8	133/.0111	0.030	.017	0.265	130	78	450°C
6	133/.0142	0.030	.017	0.310	175	115	450°C
4	133/.0177	0.030	.017	0.365	235	175	450°C
2	133/.0223	0.035	.020	0.450	315	260	450°C
1	259/.0177	0.035	.020	0.490	420	320	450°C
1/0	259/.0202	0.035	.020	0.535	490	400	450°C
2/0	259/.0229	0.035	.020	0.590	580	505	450°C
3/0	259/.0255	0.035	.020	0.650	675	620	450°C
4/0	259/.0286	0.035	.020	0.710	785	760	450°C
250 MCM	427/.0255	0.040	.020	0.775	865	915	450°C
350 MCM	427/.0286	0.040	.020	0.890	1075	1250	450°C
500 MCM	427/.0342	0.040	.020	1.045	1400	1770	450°C

*Dimensions and weights shown are nominal, subject to standard industry tolerances.
