York Wire Company.

Silicone Rubber Glass Braid Conductors.
With an Overall Silicone Rubber Jacket.
600 volts, 200ºC, 16 AWG - 10 AWG.

Conductor:

Stranded tinned, annealed copper per ASTM B33.

Sizes:

16 AWG - 10 AWG.

Insulation:

Silicone rubber with a fiberglass braid over the insulation.

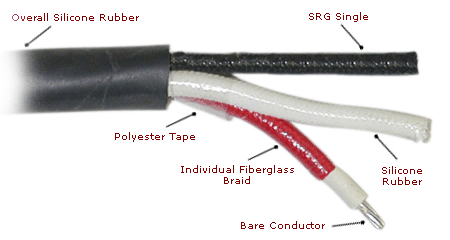

CABLE:

The conductors are cabled with a left hand lay and bound with a polyester tape. An overall silicone rubber jacket covers the core.

Applications:

Used for equipment wiring, as well as signal and control circuits. Ideal in locations where high temperature or hazardous conditions exist requiring heat resistance at 600 volts.

16 AWG (7/.0192) .030 Insulation

Cond	Silicone Jacket	Cable OD	Weight Lbs / Mft	Temperature Rating
2	.045	0.355	60	200°C
3	.045	0.375	75	200°C
4	.045	0.410	95	200°C
5	.045	0.455	110	200°C
7	.045	0.485	145	200°C
9	.060	0.595	200	200°C
12	.060	0.665	255	200°C
19	.060	0.775	375	200°C
24	.080	0.945	500	200°C
37	.080	1.075	720	200°C

14 AWG (7/.0242) .030 Insulation

Cond	Silicone Jacket	Cable OD	Weight Lbs / Mft	Temperature Rating
2	.045	0.385	52	200°C
3	.045	0.405	96	200°C
4	.045	0.445	120	200°C
5	.045	0.485	144	200°C
7	.060	0.560	208	200°C
9	.060	0.650	261	200°C
12	.060	0.725	336	200°C
19	.080	0.890	534	200°C
24	.080	1.035	641	200°C

12 AWG (19/.0179) .030 Insulation

Cond	Silicone Jacket	Cable OD	Weight Lbs / Mft	Temperature Rating
2	.045	0.415	96	200°C
3	.045	0.440	124	200°C
4	.045	0.480	159	200°C
5	.045	0.560	195	200°C
7	.060	0.605	277	200°C
9	.060	0.705	352	200°C
12	.060	0.790	457	200°C
19	.080	0.965	725	200°C
24	.080	1.125	908	200°C

10 AWG (19/.0234) .045 Insulation

Cond	Silicone Jacket	Cable OD	Weight Lbs / Mft	Temperature Rating
2	.060	0.565	170	200°C
3	.060	0.600	233	200°C
4	.060	0.655	296	200°C
5	.060	0.720	362	200°C
7	.060	0.785	485	200°C
9	.080	0.960	650	200°C
12	.080	1.075	842	200°C

*Dimensions and weights are nominal, subject to standard industry tolerances.
*Dimensions and weights for other cable configurations are available upon request.
