York Wire Company.

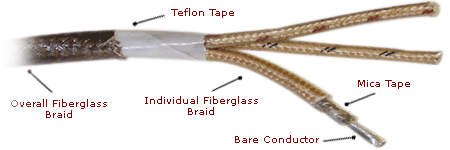

Phlogopite Mica Tapes, Fiberglass Braid Conductors.
with an Overall Fiberglass Braid Jacket.
600 volts, 450°C, 16 AWG - 10 AWG.

Conductor:

Flexible stranded nickel plated, annealed copper.

Sizes:

16 AWG - 10 AWG.

Insulation:

Phlogopite mica tapes, fiberglass braid jacket with a high temperature saturant.

CABLE:

The conductors are cabled together with a left hand lay. An overall fiberglass braid is then treated with a high temperature saturant. Armor braid optional.

Applications:

Used in equipment that will be exposed to high temperatures.

Approvals:

UL approved lead wire 450°C. Non UL operating temperature can withstand up to 2400ºF short term.

16 AWG (16/.010)

Cond	Braid Jacket	Cable OD	Weight Lbs / Mft	Temperature Rating
2	.018	0.290	38	450°C
3	.018	0.310	57	450°C
4	.018	0.345	75	450°C
5	.018	0.380	93	450°C
7	.018	0.420	129	450°C
9	.018	0.500	165	450°C
12	.018	0.570	219	450°C
19	.025	0.695	342	450°C
24	.025	0.810	431	450°C
37	.025	0.935	659	450°C

14 AWG (41/.010)

Cond	Braid Jacket	Cable OD	Weight Lbs / Mft	Temperature Rating
2	.018	0.320	50	450°C
3	.018	0.340	75	450°C
4	.018	0.380	99	450°C
5	.018	0.420	122	450°C
7	.018	0.465	172	450°C
9	.018	0.555	217	450°C
12	.025	0.635	293	450°C
19	.025	0.760	450	450°C
24	.025	0.905	579	450°C

12 AWG (65/.010)

Cond	Braid Jacket	Cable OD	Weight Lbs / Mft	Temperature Rating
2	.018	0.350	67	450°C
3	.018	0.375	101	450°C
4	.018	0.415	133	450°C
5	.018	0.460	166	450°C
7	.018	0.510	231	450°C
9	.025	0.625	296	450°C
12	.025	0.700	393	450°C
19	.025	0.835	618	450°C
24	.025	0.995	799	450°C

10 AWG (105/.010)

Cond	Braid Jacket	Cable OD	Weight Lbs / Mft	Temperature Rating
2	.018	0.470	114	450°C
3	.018	0.505	170	450°C
4	.018	0.555	222	450°C
5	.025	0.640	292	450°C
7	.025	0.695	374	450°C
9	.025	0.830	485	450°C
12	.025	0.950	648	450°C

*Dimensions and weights shown are nominal, subject to industry tolerances.
*Dimensions and weights for other cable configurations are available upon request.
