York Wire Company.

Premium High Temperature Cable

600 volts, 450°C.

Conductor:

Flexible stranded 27% nickel plated, annealed copper.

Sizes:

18 AWG - 500 MCM.

Insulation:

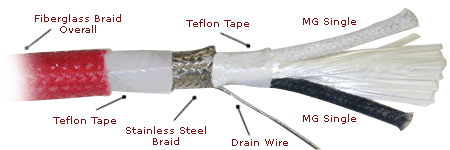

Inorganic mica tapes, fiberglass braid jacket, high temperature saturant. An inorganic mica tape thermal barrier and a PTFE tape moisture barrier are both applied over the core. An overall fiberglass braid is then treated with a high temperature saturant. Multi-conductor constructions are available upon request. Armor braid is optional.

Applications:

Used in critical areas where standard high temperature lead wire is not sufficient to maintain circuit integrity due to extreme temperatures, or exposure to open flame. Used for equipment wiring in iron mills, steel mills, glass plants, and cement kilns.

Approvals:

UL approved lead wire 450°C. Passes IEEE 383 modified 210,000 BTU vertical tray flame test at 1800°F, with circuit integrity for 2 1/2 hours minimum. Non UL operating temperature can withstand up to 2400°F short term.
